Price for carbon frameset, include frame, fork, seatpost, New TT handlebar. Headset, Thru axles. (Hydration system need to order extra)

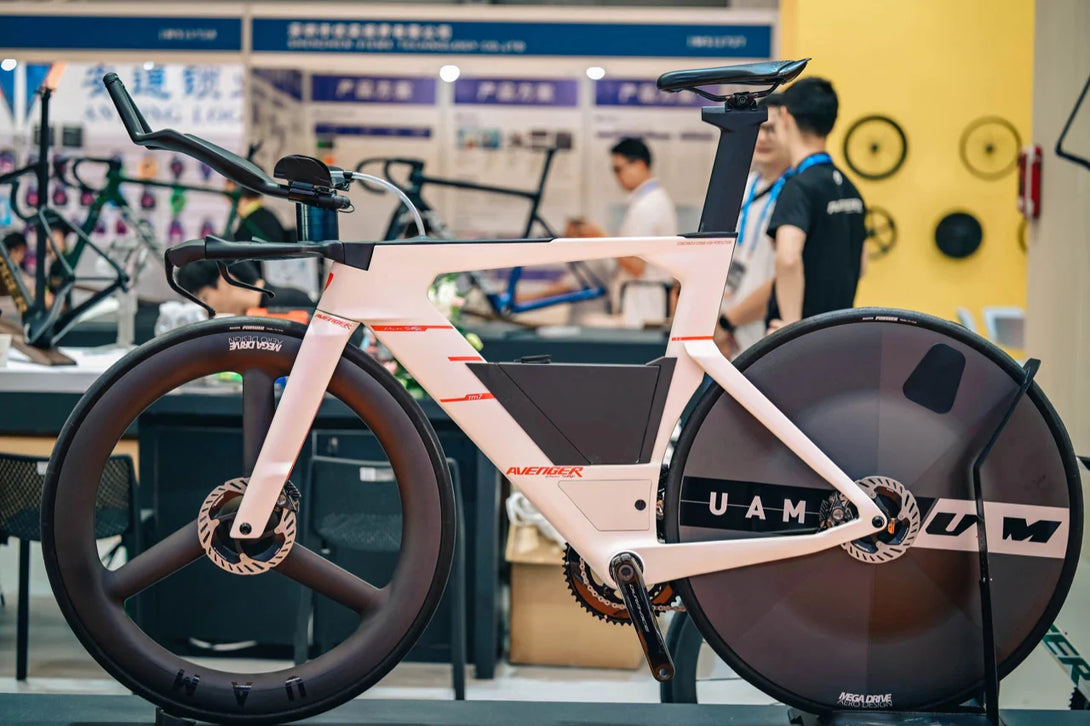

TM7 more function and flexiable. Adopts a lower wind resistance design, and the frame is shaped through aerodynamic simulation tests to create the best aerodynamic cross-flow section design. It also meets UCI standards. The cabel routing design of the entire handlebar and frame adopts a full hidden design. You can hardly find the wires, making the frame cleaner, neater and more beautiful, allowing aerodynamics to be fully utilized.
Type: Disc Time Trial/Triathlon bike frame finish: matte finish Material:Full Carbon weave:UD Weight:1355+-40g (M) Headset: Include Available sizes: 50/52/54/56/58cm BB:BB86
Introduction
Specifications
Model name:TM7 Sizes: XS(50mm), S (52mm), M (540mm), L (560mm), XL (580mm) Headtube: Top/down 52 (headset included.) BB: BB86 Seatpost:Aero Seat Post (Included.) Brake: Disc brake Tire clearance: Max 22/23/24C
Groupset compatible: Shimano/DI2 Rider weight: ≤100KG Carbon fiber: T1000/T800 Weight: frame 1355+/-40g for M size (Unpainted)
Contents: Frame, Fork, Seatpost, Headset, TT Handlebar,Derailleur Hanger Warranty: 5yr warranty for the frameset

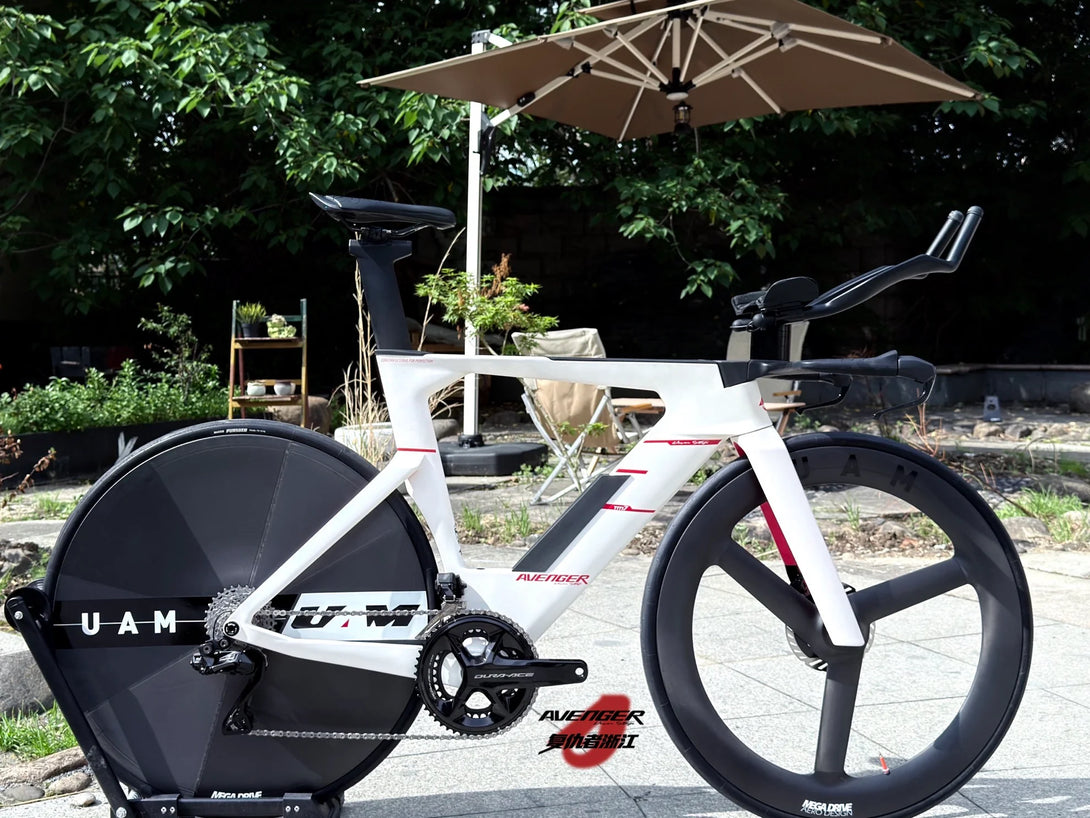

This Avenger TM6-D TT bike frame features refined tube shapes that have been tuned to complement UAM wheel shapes and deliver aerodynamic performance that is ready to battle with the fastest bikes on the road. Full front-end integration contributes to the Avenger’s slippery design.
Avenger Force Defined:
Balanced for aero efficiency and weight savings
Tube drop shapes complement UAM wheel shapes
Integrated Front-End hides wires and brake
Wind tunnel tested for performance at 32 kph/20 mph and 48 kph/30 mph
Function
TM6-R come with an top tube storage solution that makes efficient use of unused space for stashing your repair kit, windbreaker, or anything else you choose to carry. And on rear side of saddle and downtube can loading your bottle cages.
Geometry
Technical Details
Aerodynamic design
The well-designed streamlined appearance of the entire frame combined with the aerodynamic tube section provides the entire frame with an extraordinary aerodynamic advantage.
Layup technology
Excellent carbon materials Layup technology make the frames wall thickness is equally distributed, no wrinkles and the inside surface is very smooth. Ensures the stiffness and stability of the frame
High modulus carbon
From T700 to T1000, We choose the 'Toray' carbon fiber materials to control the quality from the original source. High-quality materials are the primary guarantee for stable quality.
Full internal cable routing
The fully internal cable routing design allows the cable tubes to pass from the handlebars through the fork steerer, making the entire bike look very neat and lightweight. The aerodynamic design provides additional energy and power, which enhances the enthusiasm for riding.
