Carbon Full suspenion 29er MTB Avenger CX03

Name: Carbon Full suspenion 29er MTB Avenger CX03
Brand: Avenger Carbon Bike
SKU: 46324442169568
Price: 1099.0 USD
Availability: InStock

$1,099.00

Ask a Question

Description

Carbon Full Suspension Mountain Bike Frames

Avenger CX03 it's an new design 2024.

Full suspension is specially designed for downhills. With shock absorb, our carbon frame could help riders to control the bike easier, and the same time, to keep yourself safe during extreme downhills. Speed is not the only pursuit, but safety. When you dive down the mountainside,to withstand a variety of jumps and impacts, so the bottom bracket of the frame, the head tube, the rear fork, etc., are rigid enough, besides the ultra light weight.

Model: FM138 29ER Boost
XC Full Suspension
SIZE: 15. 5"/17.5"/19"/21"
BB:BB92
Headset:FSA NO, 55R 1-1/2",1-1/2" Fork Travel: 100/120MM
Shock Size:190*40mm/190*45mm
Shock Travel: 100mmV/120mm
Tire size:29x2.4"
S/P Size: 31. 6mm
Crank set:36T

Frame Weight:

15.5”：1882+-45g

17.5”：1923+-45g

19”: 2046+-45g

21”: 2088+-45g

Features

29er mountain bike frame

29er mountain bike frame is the most popular used MTB frame now, with a 29 inch in diameter. With 29 inch wheels, the 29er MTB frames have less rolling friction, which means roll more efficiently, and you need less effort to maintain the bike. Now we only sell 29er MTB frames on our store.

Full suspension mountain bike frame

Full suspension mountain bike frame is especially used for AM, XC, DH, and Enduro. We sell a full suspension MTB frame with 120mm /110mm travel, Not include shock absorber. Thanks to Toray High-End carbon fiber, we can build the frame most steadily. Stronger, lighter, and stiffer with reasonable price.

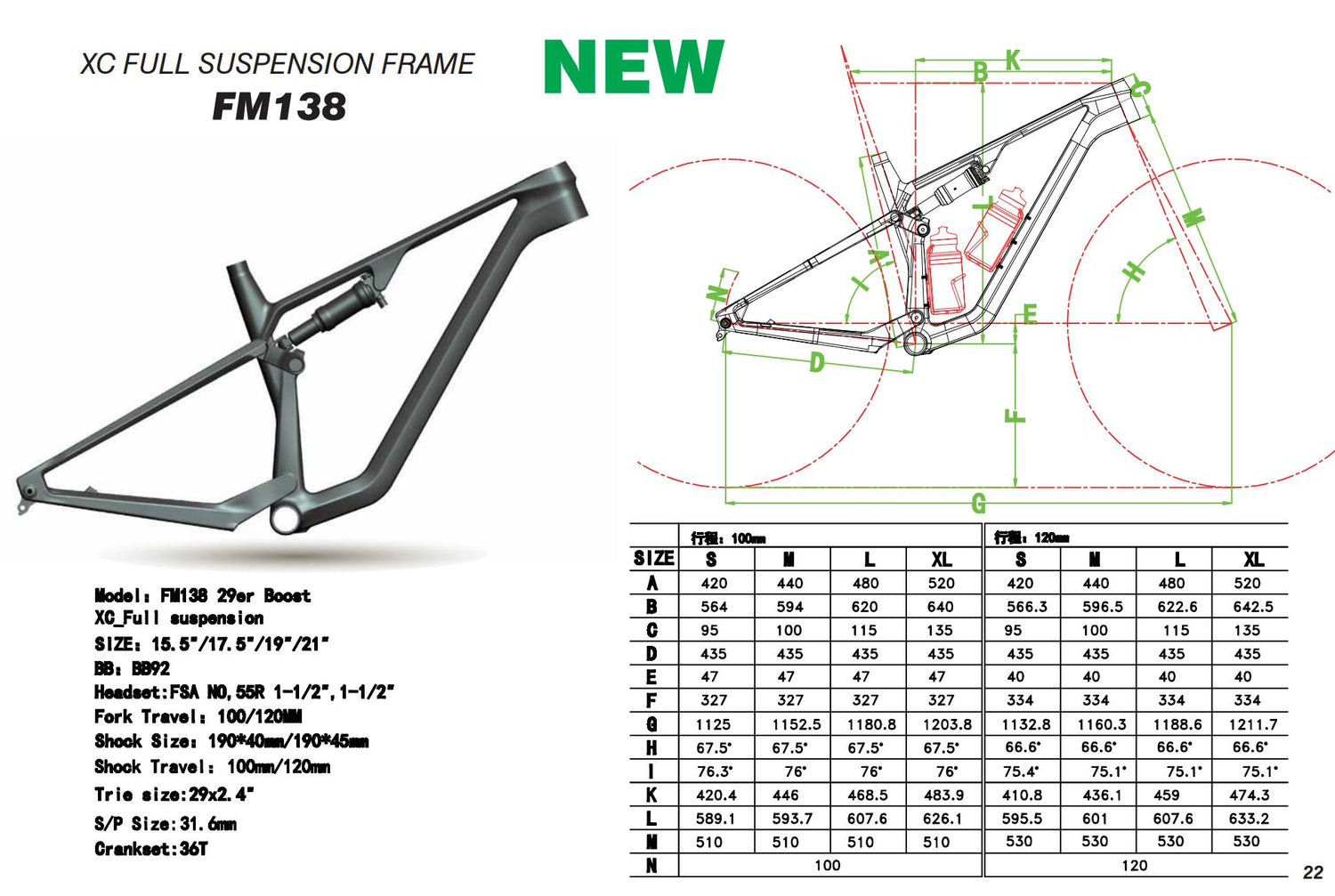

Geometry

Technical Details

Aerodynamic design

The well-designed streamlined appearance of the entire frame combined with the aerodynamic tube section provides the entire frame with an extraordinary aerodynamic advantage.

Layup technology

Excellent carbon materials Layup technology make the frames wall thickness is equally distributed, no wrinkles and the inside surface is very smooth. Ensures the stiffness and stability of the frame

High modulus carbon

From T700 to T1000, We choose the 'Toray' carbon fiber materials to control the quality from the original source. High-quality materials are the primary guarantee for stable quality.

Full internal cable routing

The fully internal cable routing design allows the cables to pass from the handlebars through the fork steerer, making the entire bike look very neat and lightweight. The aerodynamic design provides additional energy and power, which enhances the enthusiasm for riding.
