Avenger Shuttle
Avenger Shuttle use the New Aero tube design styles. The frame is designed from the head tube to the down tube, the seat tube, and the rear fork , all are use the Toray high stiffness carbon fiber materials. It's using the internal EPS and wax combined molding progress technology, make the frame quality more stable.
Shuttle -SL It presents ultra-light product characteristics and brings sufficient riding comfort, bringing infinite comfort and enjoyment to cyclists during their road riding journey.
- Type: Aero Full Carbon Disc road frame Shuttle-SL
- Finish: UD carbon finish
- Material:Toray T800/ T1000
- Weave: UD
- Tire cleanrance: Max up to 700*32C
- Rear axle:142*12mm
- Front axle:100*12mm
- Rotor diameter:140/160mm
- Frame Weight: 795±40g (Super Light Version)
- Fork weight: 380±15(Super Light Version)
- Headset: FSA NO.55R
- BB: T47-B (External)
- Available sizes: 50/52/54/56/58cm
Avenger Shuttle-SL Carbon Frameset part details :
Frame weight (Super light Version) with small parts (Hanger/SP clamp..)
50cm:776+-15g
52cm:780+-15g
54cm:795+-15g
56cm:814+-15g
58cm:828+-15g
Fork weight:
380+_10g(Super light Version)
Seatpost (Length 350mm): 90+_10g w/o Clamp parts(39g)
Handlebar: 330+_10g
Product details
The frameset comes including headset/rear hanger/thru axles/computer mount, as Free gifts
Customer Reviews

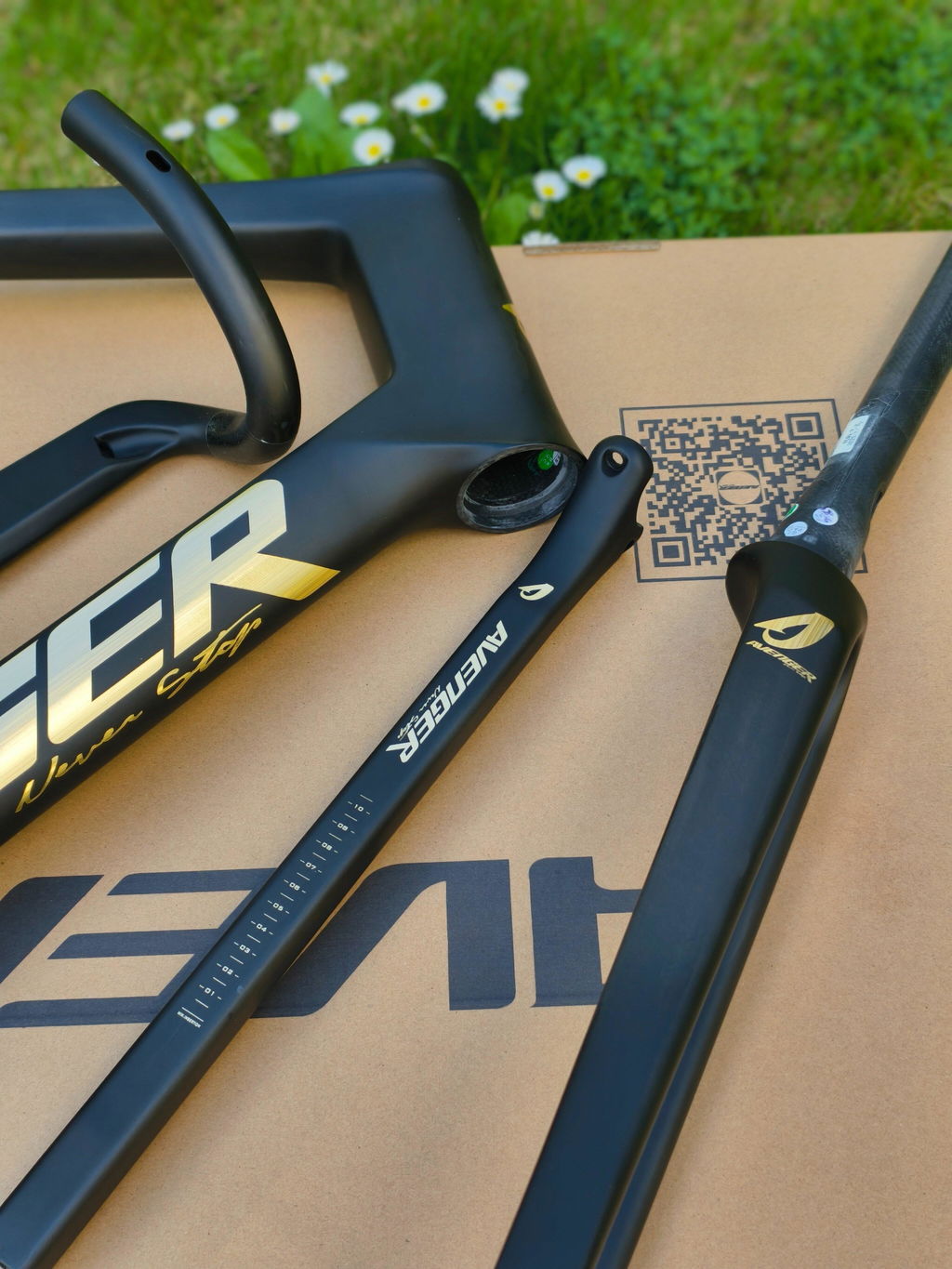

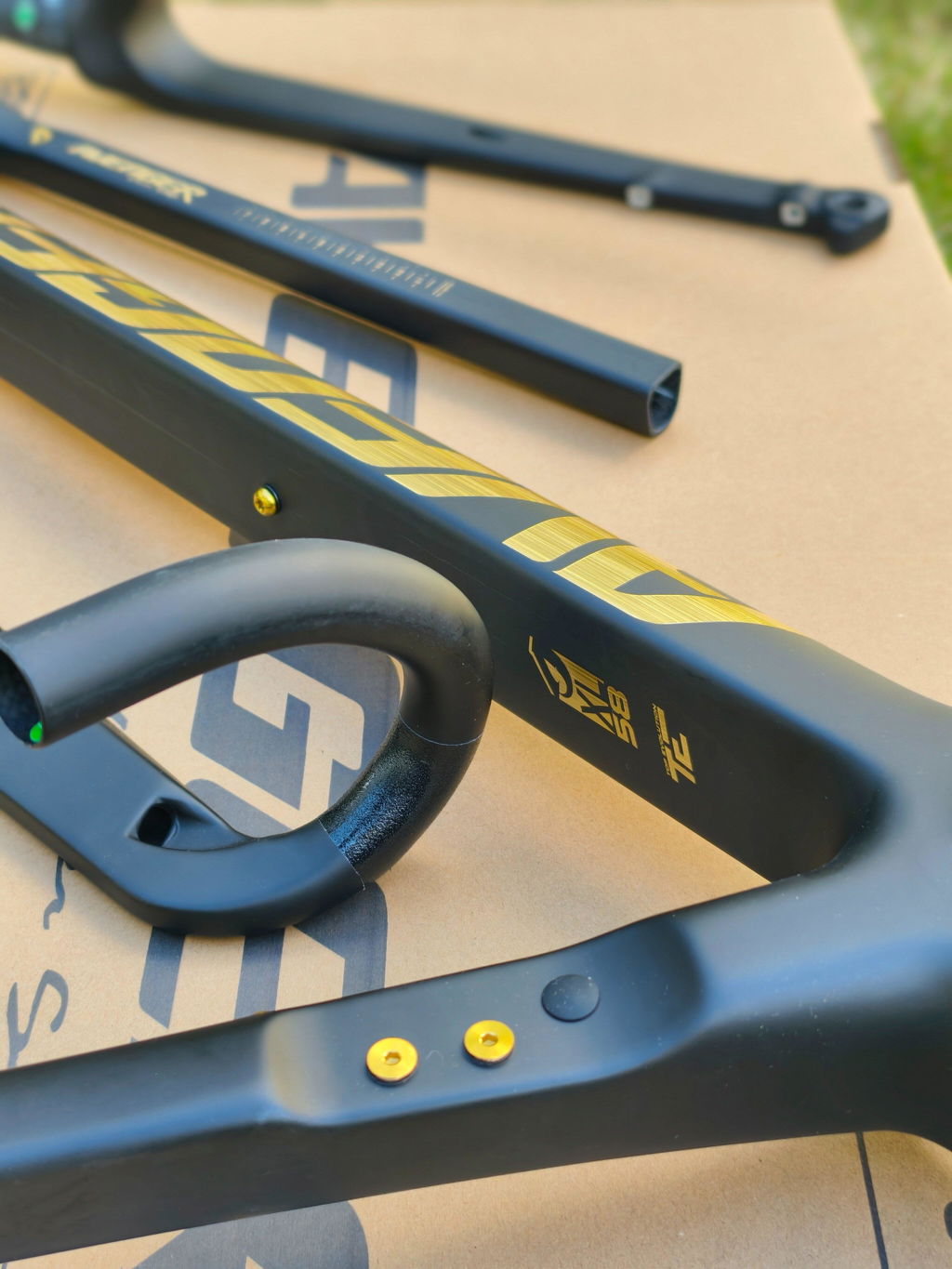

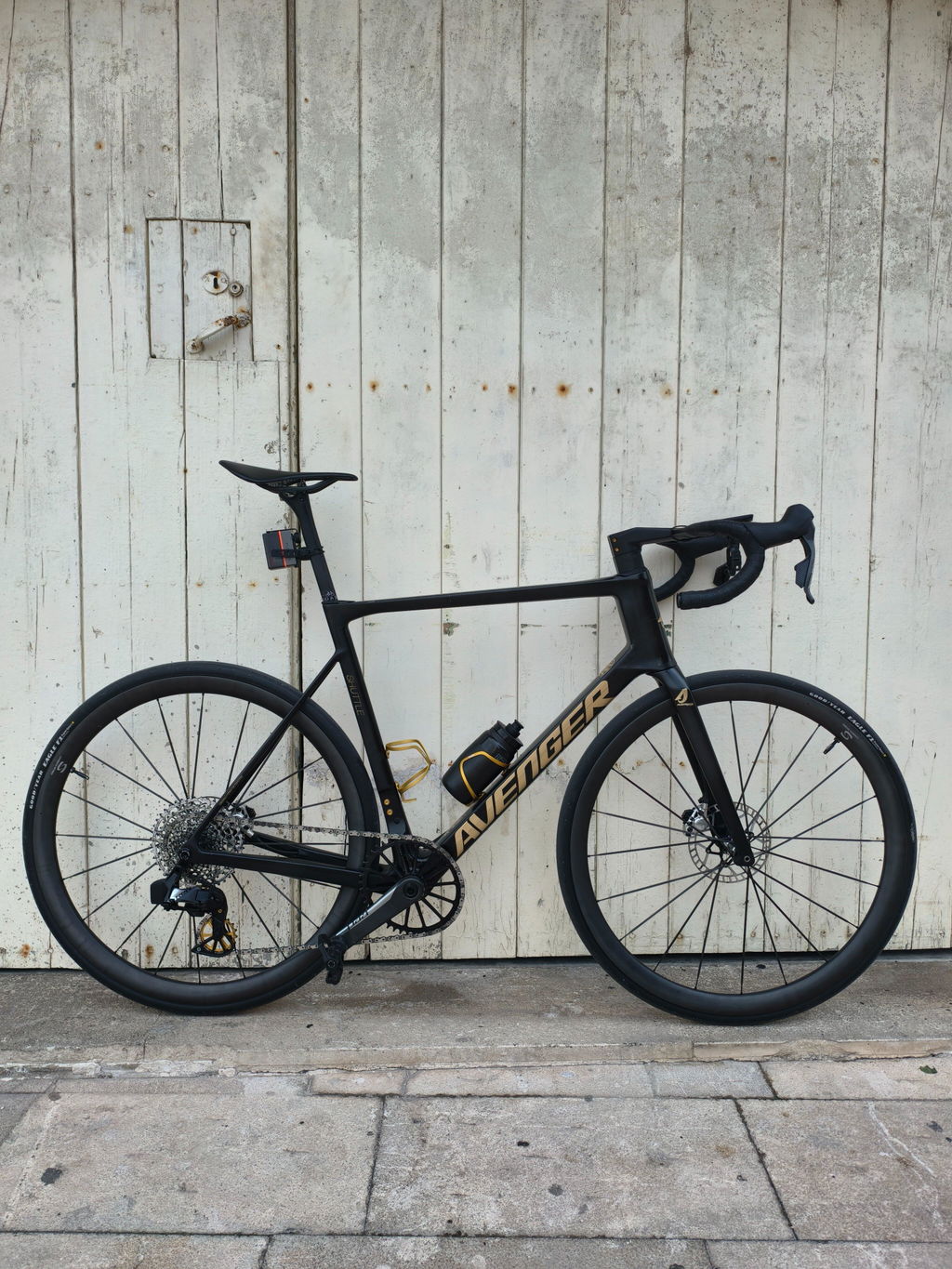

I'm very satisfied as the bike is very light, stiff, responsive, comfortable, good looking accelerating very fast. On the flat roads, when you reach 40 and above you feel like you fly, like on the aero bike, its super feeling. Descending is also super easy, you just have to control it by your brakes, very fast, its very stable and predictable. Going down with the side wind its not problematic and quick turns are a pure pleasure, in general the name of the frameset is just ride, its like a space shuttle, but super light.
Technical Details
Aerodynamic design
The well-designed streamlined appearance of the entire frame combined with the aerodynamic tube section provides the entire frame with an extraordinary aerodynamic advantage.
Layup technology
Excellent carbon materials Layup technology make the frames wall thickness is equally distributed, no wrinkles and the inside surface is very smooth. Ensures the stiffness and stability of the frame
High modulus carbon
From T700 to T1000, We choose the 'Toray' carbon fiber materials to control the quality from the original source. High-quality materials are the primary guarantee for stable quality.
Full internal cable routing
The fully internal cable routing design allows the cables to pass from the handlebars through the fork steerer, making the entire bike look very neat and lightweight. The aerodynamic design provides additional energy and power, which enhances the enthusiasm for riding.
