2026 New Carbon Road bike frame Avenger Shuttle

Note:when you place the order,please note the size of handlebar and stem.

Handlebar:380/400/420/440mm

Stem:90/100/110/120mm

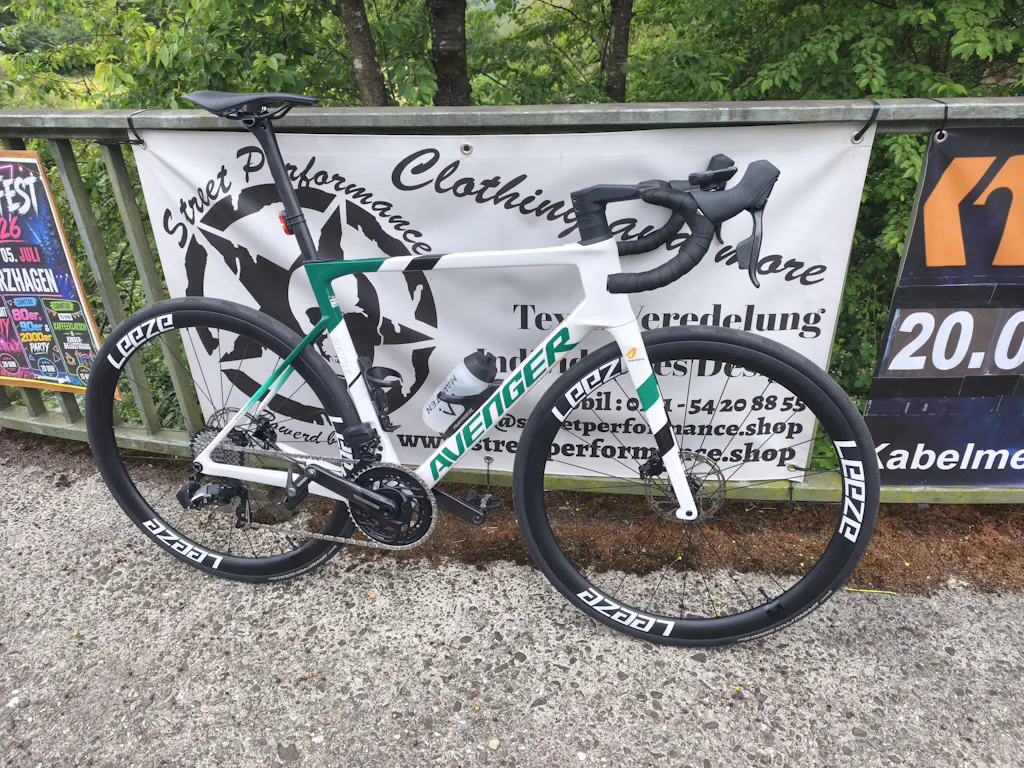

Avenger Shuttle

Avenger Shuttle use the New Aero tube design styles. The frame is designed from the head tube to the down tube, the seat tube, and the rear fork , all are use the Toray high stiffness carbon fiber materials.

It's using the internal EPS and wax combined molding progress technology, make the frame quality more stable.

Shuttle -SL It presents ultra-light product characteristics and brings sufficient riding comfort, bringing infinite comfort and enjoyment to cyclists during their road riding journey.

This Bike Avenger Shuttle UCI Approved.

Specification

Specification Item	Details
Type	Aero Full Carbon Disc Road Frame Shuttle
Finish	UD carbon finish
Material	Shuttle:T800+T1000 Shuttle-SL:T1100+NGF
Weave	UD
Tire cleanrance	Max up to 700*32C
Rear axle	142*12mm
Front axle	100*12mm
Rotor diameter	140/160mm
Frame Weight	950±40g (Normal Version)
Fork weight	430±15(Normal Version)
Headset	FSA NO.55R
Available sizes	50/52/54/56/58cm

Weight

Frame weight (Normal Version) with small parts (Hanger/SP clamp...)
50cm	930+-20g
52cm	935+-20g
54cm	947+-20g
56cm	966+-20g
58cm	993+-20g
Fork weight	430+_10g(Normal Version)
Seatpost (Length 350mm)	90+_10g w/o Clamp parts(39g)
Handlebar:	330+_10g
Frame Weight	950±40g (Normal Version)
Fork weight	430±15(Normal Version)
